Membrane fouling control: extending runs between cleans with data

Sensor trends, cleaning response, and pretreatment feedback to assess productive run intervals and irreversible fouling against measured baselines.

Engineering knowledge guide2026foulingCIPnormalized fluxΔPSDI

Use when

Plants clean on calendar time while fouling is non-linear.

Process options

Sensor-driven trending + cleaning science + pretreatment feedback loops.

Assessment output

Measure productive run intervals, cleaning recovery, and irreversible fouling trends.

Inputs and conditions for an assessment

Collect feed variability, capacity, target quality, operating hours, discharge or reuse boundaries and installed equipment data. Compare examples on matched conditions and meter boundaries; assess a project using actual water data, equipment documentation and any necessary tests.

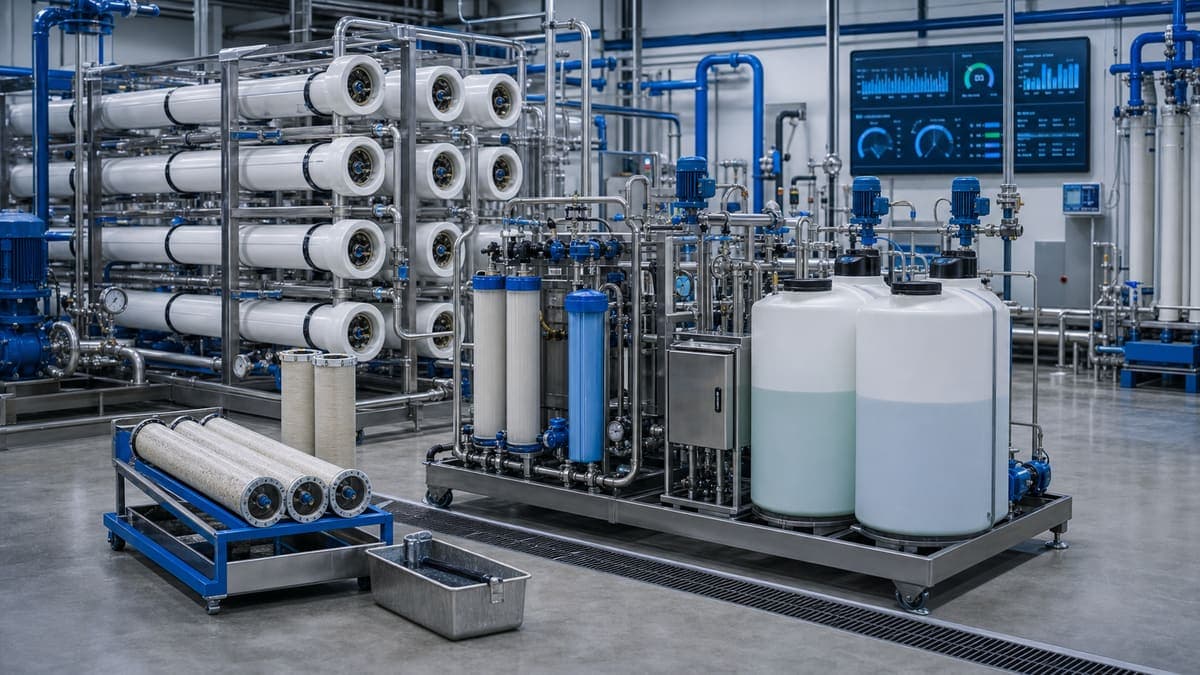

View the process illustration
Membrane fouling control: extending runs between cleans with data water treatment solution illustration

1. Process context & when this scenario is the right entry point

Membrane fouling can reduce RO/NF performance and increase cost. Possible signs include falling normalized permeate flow, increasing pressure required to maintain production, and rising feed-to-concentrate differential pressure (ΔP); these signs need not occur together. Changes in temperature, feed salinity, recovery, controls, or instruments can produce similar symptoms. Diagnose these causes before deciding on chemical cleaning (CIP) or replacement.

This scenario, focusing on proactive membrane fouling control, is the right entry point for any facility operating or planning to operate RO/NF systems, particularly those processing complex feedwaters such as surface water, treated municipal or industrial wastewater effluent, or challenging groundwater sources. The objective is to optimize membrane operation, extend cleaning intervals, minimize chemical usage, and maximize membrane life through advanced monitoring and data-driven decisions.

2. Feed characteristics & key risks

The susceptibility of a membrane system to fouling is largely dictated by its feed water quality. Key risks include:

  • Particulate/Colloidal Fouling: Caused by suspended solids, silts, clays, and colloidal silica. Measured by SDI₁₅ (Silt Density Index), which indicates the rate at which a 0.45µm filter plugs. High SDI₁₅ values (>5 for RO) are strong indicators of potential particulate fouling.
  • Organic Fouling: Due to natural organic matter (NOM), humic acids, fulvic acids, and synthetic organic compounds. These can adsorb onto the membrane surface, increasing hydrophobicity and reducing flux.
  • Biological (Biofouling): Formation of biofilms by microorganisms (bacteria, algae, fungi) on the membrane surface, leading to a slimy layer that impedes flow. This is particularly prevalent in systems with insufficient biocide control or intermittent operation.
  • Scaling (Inorganic Fouling): Sparingly soluble salts include calcium carbonate, calcium sulfate, barium sulfate, silica, and strontium sulfate. LSI (Langelier Saturation Index), Stiff & Davis, and Ryznar are carbonate-related indices; they are not general indices for sulfates or silica. Evaluate those species using appropriate solubility/speciation calculations at the concentrate conditions, including temperature and recovery.
  • Oxidative Damage: While not strictly fouling, oxidants like chlorine can damage polyamide membranes, leading to increased permeate conductivity and requiring membrane replacement. This is typically managed upstream of the RO/NF.

3. Concentrate / reject routing

Adhering to the principle of mass balance, the concentrate (also known as reject or brine) stream from the RO/NF system, rich in the impurities removed from the feed, must be managed responsibly. Its disposition directly impacts the overall economics and environmental footprint of the process. Typical routing strategies include:

  • Regulated Discharge: Direct discharge to a permitted industrial sewer or surface water body, provided discharge limits (TDS, specific ion concentrations, metals, etc.) are met. This often requires pH adjustment and sometimes further polishing to meet regulatory compliance.
  • Further Treatment for Recovery: Additional RO may recover water where pressure, salinity, scale, and fouling limits permit. NF is useful for selected separations but is not a universal NaCl brine concentrator. Confirm the chosen separation and full mass balance before assigning an increase in recovery.
  • Evaporation/Crystallization: Within a defined ZLD boundary, evaporation and crystallization may recover additional water and salts. Manage condensate contaminants, residual mother liquor, and solid-waste classification; neither clean condensate nor elimination of every liquid waste is automatic. Beneficial reuse requires product-specific acceptance.
  • Deep Well Injection: In regions where geology permits and regulations allow, high-TDS concentrates can be injected into deep, permeable geological formations, isolated from potable water sources.
  • Industrial Reuse: In some cases, the concentrate, with its elevated TDS, might be suitable for less demanding industrial applications such as cooling tower makeup, dust suppression, or certain washing processes, subject to specific quality requirements.
  • Return to Upstream Process: If the RO/NF system is treating a specific waste stream within a larger industrial complex (e.g., cooling tower blowdown, specific process rinse water), the concentrate might be recycled to an earlier stage of the overall plant's wastewater treatment or specific unit operation for further processing, provided it does not adversely affect that unit.

The choice of concentrate routing is dictated by feed water characteristics, permeate demand, cost, regulatory constraints, and the overall plant water balance strategy. Each option carries distinct capital and operational expenditure implications.

4. Reference process train options

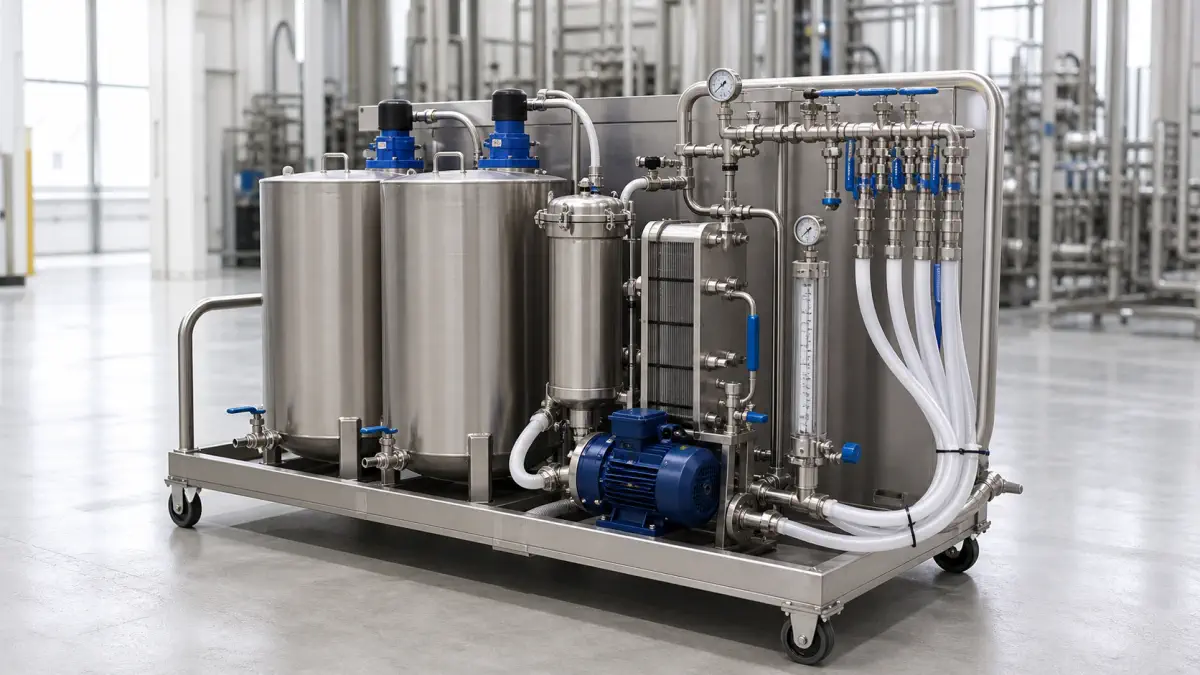

Packaged clean-in-place skid for RO and UF membrane systems

Effective membrane fouling control begins with robust pretreatment and extends through optimized RO/NF operation. A typical process train includes:

  • Pretreatment:
    • Coagulation/Flocculation & Clarification: For high-turbidity surface waters or wastewater effluents, to remove suspended solids, colloids, and some organic matter.
    • Media Filtration: Multi-media filters (MMF) or dual-media filters (DMF) to remove larger suspended solids.
    • Ultrafiltration (UF) or Microfiltration (MF): Can reduce suspended solids and selected colloids/microorganisms, subject to membrane rating and integrity. SDI₁₅ <1-3 is an illustrative project target, not a guaranteed outcome or proof of removal of dissolved organics and all pathogens.
    • Chemical Dosing:
      • Biocides: To control biological growth (e.g., sodium hypochlorite, followed by metabisulfite dechlorination).
      • Dechlorination: Sodium bisulfite (SBS) or activated carbon filters to remove residual chlorine, protecting polyamide membranes.
      • Anti-scalant: Dosed upstream of the RO/NF to inhibit the precipitation of scaling salts (e.g., calcium carbonate, sulfates, silica) by crystal distortion and dispersion.
      • pH Adjustment: Acid can reduce carbonate scaling, but H₂SO₄ also adds sulfate and may increase sulfate-scale risk. Raising pH with NaOH changes silica solubility and other precipitation risks; verify the complete chemistry and membrane limits. If metal precipitation is intended, separate the precipitated solids upstream rather than allowing them to form on RO/NF.
  • RO/NF System:
    • Membrane Staging: Multi-stage designs (e.g., 2-stage, 3-stage) are used to achieve higher water recovery rates by feeding the concentrate from one stage to the next, while managing osmotic pressure and scaling potential. This optimizes membrane surface area utilization.
    • Permeate Flux: Select design flux (LMH) from feed quality, membrane limits, and verified operating history. A lower flux may reduce deposition but requires more area. 10 to 30 L/(m²·h) is an illustrative comparison range for industrial RO, not a universal allowable or sustainable flux.
  • CIP (Clean-In-Place) System: Essential for restoring membrane performance. Includes tanks, pumps, and piping for circulating cleaning solutions (acidic and alkaline) to dissolve and remove foulants.

5. Operating parameters

Precise control and monitoring of operating parameters are critical for proactive fouling management:

  • SDI₁₅ Targets: Values below 5 or 3 are common screening/design examples; apply the selected element specification. SDI testing requires a stated test interval, including automated online instruments, and is not an instantaneous continuous measurement. Low SDI does not exclude biofouling, dissolved-organic fouling, or scale.
  • LSI / Scaling Posture: Calculate carbonate LSI and separately defined saturation measures for sulfates, silica, and other species from reliable analyses and concentrate conditions. If a digital twin is included, validate its chemistry model and input updates; do not assume continuous complete-ion measurement or automatic safe dose optimization. Any antiscalant dose must remain within demonstrated chemistry and membrane compatibility limits.
  • Design Flux (LMH): Express permeate flux in L/(m²·h) and normalize performance for temperature, pressure, feed/concentrate salinity, and recovery using the appropriate method. A >10-15% decline is an illustrative investigation/CIP trigger, not a universal rule. The selected FilmTec guidance, for example, calls for cleaning at a 10% normalized permeate-flow decline after other causes are assessed.
  • Differential Pressure (ΔP): Record feed-to-concentrate pressure drop by stage and compare at normalized conditions. A 15-20% rise is an illustrative alert, not a general safe limit. FilmTec guidance specifies a 10-15% normalized pressure-drop rise as one cleaning criterion. Follow the selected element/vessel limits and check mechanical or instrument causes; a ΔP rise alone does not identify the foulant.

6. Digital twin & instrumentation

  • CIP Trigger Advice: If a digital twin is included, compare normalized flow, ΔP, and salt passage against the applicable manufacturer criteria. Check other causes and require operator confirmation; there is no guaranteed single optimum cleaning time.
    • Antiscalant Assessment: Compare doses using validated water analyses and concentrate models; do not assume automatic safe dosing from a model.
    • Predictive Maintenance: Assess pump, valve, and current trends against independent records, with explicit false-alarm, missed-event, and manual-inspection controls.
    • Energy Monitoring: Calculate specific energy consumption (kWh/m³) and compare opportunities under actual operating conditions.

8. Common engineering mistakes & pilot KPIs

Common Engineering Mistakes:

  • Underestimating Feed Water Variability: Designing for average conditions rather than extreme or fluctuating feed water quality often leads to inadequate pretreatment and rapid fouling.
  • Ignoring Normalized Flux and ΔP Trends: Relying solely on permeate flow without normalizing or neglecting the crucial information provided by stage differential pressures.
  • Overly Aggressive Flux Rates: Pushing membranes to higher fluxes to reduce capital cost per permeate unit often results in faster fouling, increased cleaning frequency, and shorter membrane life, leading to higher total cost of ownership.
  • Inadequate Pretreatment Design: Insufficient removal of suspended solids, organics, or colloids from the feed water (e.g., SDI consistently above target).
  • Improper CIP Execution: Not performing cleans when needed, using incorrect chemical concentrations, insufficient contact time, or improper cleaning sequence, leading to irreversible fouling.
  • Assuming Anti-scalants are a Cure-all: While effective, anti-scalants have limitations. They do not eliminate the need for proper pH adjustment or robust pretreatment for particulate removal.
  • Lack of Monitoring for Key Parameters: Without reliable periodic SDI₁₅ tests and continuous operating records for normalized flow and stage ΔP, pretreatment excursions and performance changes may be missed.

Key Performance Indicators (KPIs) for Pilot Studies:

  • Normalized Flux Decline Rate: Express as % decline per day or week under stated conditions. Investigate controls, instruments, salinity, and compaction as well as fouling before assigning the change to a foulant.
  • CIP Effectiveness: Measured by the percentage of normalized flux recovery after a CIP, and the stability of that recovery.
  • Cleaning Frequency & Chemical Consumption: Indicating the operational burden and cost associated with fouling.
  • Specific Energy Consumption (kWh/m³): Energy required to produce a unit volume of permeate, directly impacted by fouling (higher ΔP leads to higher pump energy).
  • Concentrate Quality & Volume: To validate concentrate routing strategy and confirm recovery targets.
  • Membrane Element Inspection: Physical inspection of pilot membranes after extended runs to visually assess fouling types and severity.

9. FAQ

Q1: How often should RO membranes be cleaned? A1: Use the selected manufacturer's performance criteria rather than a fixed calendar. A 10-15% normalized-flow decline or 15-20% pressure-drop rise is illustrative. FilmTec guidance lists a 10% permeate-flow decline, 5-10% salt-passage rise, or 10-15% normalized pressure-drop rise. Investigate operating, instrument, and pretreatment causes before operator-approved CIP.

Q2: Can I prevent all fouling? A2: Complete prevention of fouling is generally not economically or practically feasible. The goal is effective control and minimization to extend run times, maintain permeate quality, and reduce operational costs. Robust pretreatment, optimal chemical dosing (anti-scalant, biocide), and optimized operating parameters (e.g., lower flux) are key strategies.

Q3: What's the most critical parameter to monitor for fouling? A3: Track normalized permeate flow, salt passage, and stage differential pressure (ΔP) together, with measured feed chemistry. They describe performance changes but do not uniquely identify fouling. Periodic or automated SDI₁₅ tests screen particulate risk; low SDI does not exclude biofouling.

Q4: How can a digital twin improve fouling control? A4: A validated project model may bring together measurements, trends, balances, and recommendations to support operator comparisons. It still needs reliable sensors, independent validation, and approval; longer membrane life, less downtime, or prediction of every fouling event is not guaranteed.
