Advanced EDI with Low Energy Consumption: 18.2 MΩ·cm quality with ~20% less stack power

Advanced EDI with Low Energy Consumption: 18.2 MΩ·cm quality with ~20% less stack power

The relentless drive towards higher purity and reduced operational expenditure in microelectronics manufacturing continues to challenge conventional ultrapure water (UPW) systems. For 2026-era fabs, achieving 18.2 MΩ·cm resistivity at the point-of-use with high reliability and a minimal environmental footprint is no longer a luxury but a fundamental requirement for emerging node technologies. The integration of advanced membrane processes and ion-exchange polishing steps has pushed the boundaries of contaminant removal. However, traditional Electrodionization (EDI) systems, while effective, often represent a significant energy draw within the UPW treatment train. Chief Engineers and R&D leads are now critically evaluating every kWh/m³ and every milligram of chemical consumed, particularly as EPC bids for next-generation facilities increasingly mandate aggressive sustainability targets, zero liquid discharge (ZLD) aspirations, and enhanced water reuse capabilities. AquaChain's advancements in EDI technology directly address this nexus, offering a pathway to achieve stringent UPW quality with a demonstrable reduction in specific energy consumption for the EDI polishing stage.

Understanding the Physics of Energy Consumption in EDI

Electrodionization combines ion exchange resins and ion-selective membranes under an electric field to continuously deionize water without chemical regeneration. The primary energy consumer in an EDI stack is the electrical power required to drive ions across the membranes and through the ion exchange resin beds. This power is largely dissipated as heat due to the ohmic resistance of the system.

The electrical power ($P$) consumed by an EDI stack is fundamentally governed by Ohm's Law and can be expressed as:

$P = I^2 R_{stack} = (E_{applied} - E_{Nernst}) \cdot I$

where $I$ is the applied current, $R_{stack}$ is the total electrical resistance of the stack, $E_{applied}$ is the applied voltage, and $E_{Nernst}$ is the Nernst potential (thermodynamic minimum voltage required for ion transport). The stack resistance $R_{stack}$ is a complex function of the water conductivity, membrane resistivity, ion exchange resin resistivity, and stack geometry. It can be further elaborated as $R_{stack} = \sum_{i} \rho_i \frac{L_i}{A_i}$, where $\rho_i$ is the specific resistivity of each component (dilute compartment, concentrate compartment, membranes), $L_i$ is its effective thickness, and $A_i$ is the effective cross-sectional area for current flow.

A critical performance metric related to energy efficiency is the current efficiency, defined as $\eta_I = \frac{\text{equivalent ions removed}}{\text{total charge passed}}$. Maximizing $\eta_I$ while minimizing Ohmic losses is central to reducing energy consumption. AquaChain's innovative EDI design focuses on reducing $R_{stack}$ through several mechanisms:

1. Optimized flow path and compartment design: Minimizing the electrical path length and maximizing the effective area for current flow, especially in the dilute compartment where resistivity is highest.
2. Advanced ion-exchange resin matrices: Utilizing resins with enhanced ionic conductivity and uniform packing characteristics, which reduces local "hot spots" of high resistance.
3. Improved membrane materials: Deploying ion-exchange membranes with lower intrinsic electrical resistance and improved selectivity, reducing the energy needed to drive ions across.
4. Intelligent control algorithms: Dynamically adjusting voltage and current based on feed water quality and desired permeate resistivity, ensuring operation at the optimal point between efficiency and performance, often just below the limiting current density to prevent water splitting and scale formation.

By addressing these fundamental physical and chemical parameters, AquaChain's advanced EDI technology achieves a significant reduction in the specific power required per cubic meter of 18.2 MΩ·cm UPW produced.

Illustrative pilot / lab comparison

Illustrative numbers only. Actual performance varies based on feed water quality, temperature, and specific operating conditions. Performance guarantee requires site-specific engineering and pilot data.

[Download Full Whitepaper: UPW Polishing 2026 — EDI stack physics & resin uniformity study] Includes 50+ pages of representative PFDs, CAD references, and 2,400 h of illustrative operating curves (synthetic / anonymised composite for training purposes).

Request the PDF through your AquaChain engineering contact after a short qualification call—no public download URL in this draft.

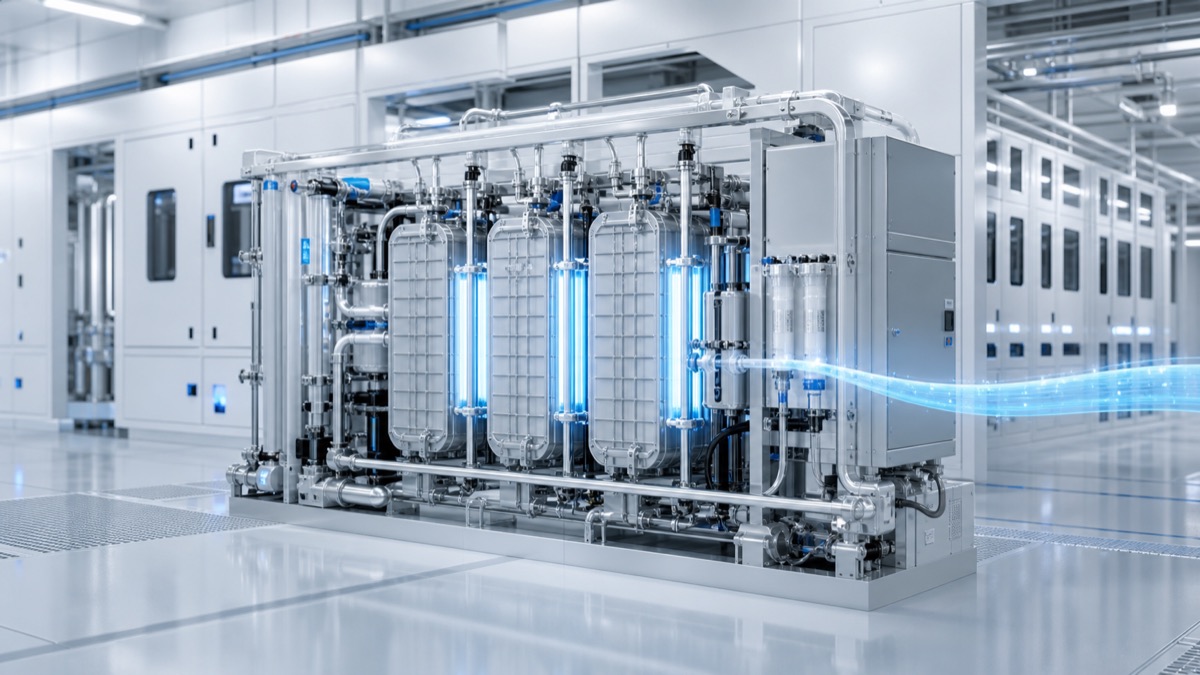

The EDI illustration is set in a clean UPW utility environment rather than a heavy industrial skid. That difference matters: the article is about reducing stack resistance and current waste while holding 18.2 MΩ·cm quality, so the visual emphasizes compact cell stacks, clean piping, power electronics, and stable polishing-loop instrumentation rather than bulk contaminant removal.

Limits and honest boundaries

While AquaChain's advanced EDI offers substantial improvements, its optimal performance is contingent upon robust pre-treatment and careful operational management. Neglecting these aspects can severely degrade performance and compromise the promised energy savings:

• Inadequate Pre-treatment: High levels of hardness (e.g., Ca²⁺, Mg²⁺), heavy metals, or colloidal silica entering the EDI stack can lead to scaling on membranes or resin fouling, increasing resistance and power consumption. Total Hardness (as CaCO₃) should typically be below 0.1 mg/L, and often undetectable for advanced UPW.
• Organic Fouling: Organic compounds, even at low ppb levels, can irreversibly foul ion-exchange resins and membranes, reducing ion transport efficiency and necessitating more frequent chemical cleaning, impacting uptime and cost. Total Organic Carbon (TOC) should ideally be below 5 ppb for EDI feed.
• Particulate Contamination: Fine particulates can plug flow channels and abrade membranes or resins, leading to non-uniform flow and localized resistance increases. Silt Density Index (SDI) for EDI feed should typically be < 3.
• Dissolved Gases: High concentrations of CO₂ in the feed, if not adequately removed by a degasifier or forced-air degassifier prior to EDI, will consume ionic capacity in the dilute compartment, increasing the electrical load and potentially reducing permeate resistivity.
• Temperature Fluctuations: Significant variations in feed water temperature affect resin kinetics, membrane permeability, and water resistivity, leading to unstable performance if not compensated by intelligent control.
• Improper Voltage/Current Management: Operating too far above the limiting current density can cause water splitting, leading to pH shifts, scaling, and reduced current efficiency. Operating too low can compromise product water quality.

FAQ

Q1: How does AquaChain's advanced EDI achieve ~20% energy reduction compared to traditional stacks? A1: The energy reduction stems from a multi-faceted approach. This includes optimizing stack geometry to reduce overall electrical resistance, deploying proprietary ion-exchange resin formulations with enhanced ionic conductivity and packing uniformity, and integrating next-generation ion-selective membranes with lower intrinsic resistance. Furthermore, sophisticated control algorithms dynamically adjust operating parameters (voltage, current) to maintain optimal performance just below the limiting current density, minimizing power dissipation due to water splitting while ensuring efficient ion removal.

Q2: What level of pre-treatment is essential to guarantee the advertised performance of this advanced EDI system? A2: To reliably achieve 18.2 MΩ·cm quality with reduced energy consumption, robust pre-treatment is critical. This typically involves reverse osmosis (RO) or ultra-high rejection RO (UHPRO) followed by effective degasification (e.g., vacuum degasifier or membrane degasifier) to remove CO₂. Critical feed water parameters to maintain are: Total Hardness < 0.1 mg/L (as CaCO₃), Silica < 0.05 mg/L, TOC < 5 ppb, and SDI₁₅ < 3. Failure to meet these criteria will increase cleaning frequency, reduce resin/membrane lifespan, and elevate specific power consumption.

Q3: What are the typical lifespan and maintenance requirements for the resins and membranes in AquaChain's advanced EDI stacks? A3: Under optimal pre-treatment and operating conditions, the ion-exchange resins in AquaChain's advanced EDI modules are designed for a service life of 5-7 years, while the ion-selective membranes typically last 3-5 years. Lifespan is highly dependent on feed water quality, operating cycles, and adherence to recommended cleaning-in-place (CIP) protocols. Our systems are designed for modularity, allowing for efficient in-situ membrane and resin replacement. Regular preventative maintenance, including monitoring differential pressures, resistivity trends, and conducting periodic CIP, is crucial to maximize component life and maintain peak performance.

Call to action

AquaChain invites chief engineers, R&D leads, and EPC discipline engineers to engage in a detailed technical consultation regarding our advanced EDI solutions. We offer pilot studies, coupon tests, and collaborative engineering workshops to tailor a solution that meets your specific UPW requirements and energy reduction targets. AquaChain can provide meter-grade narratives and comprehensive technical documentation for your upcoming bid defenses and project specifications.
