Rainwater Harvesting & Treatment: sponge-factory distributed supply
Catchment hygiene, first-flush diversion, and treatment to match end use—reducing storm peaks and municipal dependence.
Use when
Hardscape sends peaks to the sewer while plants buy potable for non-potable uses.
Process options
Storage, screening, UF/UV where needed, and cross-connection controls.
Assessment output
Lower municipal draw and storm discharge fees where tariffs reward it.
Inputs and conditions for an assessment
Collect feed variability, capacity, target quality, operating hours, discharge or reuse boundaries and installed equipment data. Compare examples on matched conditions and meter boundaries; assess a project using actual water data, equipment documentation and any necessary tests.

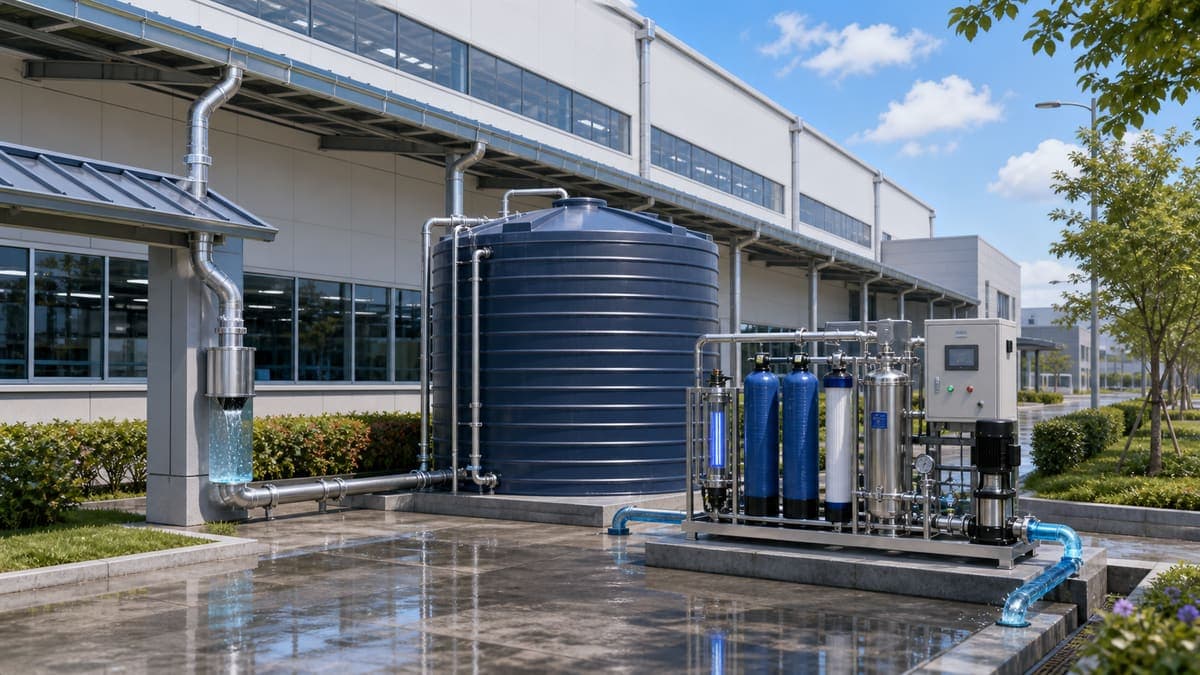

View the process illustration

Rainwater Harvesting & Treatment: sponge-factory distributed supply
In an era defined by intensifying climate change impacts, increasing regulatory scrutiny, and acute resource scarcity, industrial operations face unprecedented pressure to manage their environmental footprint. For industries supplying into stringent markets like the UK and EU, demonstrating robust water stewardship is no longer optional—it's a critical ESG gate. Every cubic meter of water sourced, treated, and discharged has an associated carbon footprint, impacting Scope 1, 2, and increasingly, Scope 3 emissions. Addressing water risk proactively, rather than reactively, is paramount for operational continuity and market access.
Rainwater harvesting and intelligent treatment systems offer a compelling solution, transforming industrial sites into "sponge factories." This distributed approach to water resource management enhances resilience by reducing reliance on stressed municipal or groundwater supplies, mitigates flood risk, and provides a sustainable, often lower-carbon, alternative water source directly at the point of use. By integrating advanced treatment technologies, this captured water can be purified to meet specific industrial process requirements, from cooling towers to non-potable utility water, reducing both operational costs and environmental impact.
Enhancing Operational Resilience and Reducing Risk
The global water crisis manifests as both scarcity and extreme weather events. Industries dependent on external water sources face supply disruptions, increasing costs, and reputational damage. Rainwater storage can buffer demand, but dry-season reliability depends on local rainfall records, usable catchment area, storage volume, and demand. A daily water balance should identify when backup supply is required. Managing stormwater runoff on-site can reduce pressure on drainage systems and may reduce discharge fees where local tariffs allow it. Supply reliability and flood attenuation should be assessed together because reserving empty storm-storage capacity reduces the volume available for water supply.
Worked energy / carbon sketch
Consider an industrial facility in the UK currently purchasing 50,000 m³/year of municipal water, which is supplied from a distant reservoir requiring significant pumping and centralized treatment. Implementing a rainwater harvesting and treatment system to supply 80% of this demand (40,000 m³/year) involves on-site collection, primary filtration, and UV disinfection.
Assumptions:
- Energy for municipal water supply (pumping, treatment, distribution) = 0.8 kWh/m³ (illustrative, varies widely by region).
- Energy for on-site rainwater treatment (pumping, filtration, UV) = 0.2 kWh/m³ (illustrative).
- Emission factor assumed solely for this example = 0.15 kg CO₂e/kWh; this is not a verified UK grid factor or a 2026 forecast. Use dated supplier and site-specific factors in an actual assessment.
Calculation:
-
Energy saved from avoiding municipal water: 40,000 m³/year × 0.8 kWh/m³ = 32,000 kWh/year
-
Energy consumed by on-site rainwater treatment: 40,000 m³/year × 0.2 kWh/m³ = 8,000 kWh/year
-
Net annual energy savings: 32,000 kWh/year - 8,000 kWh/year = 24,000 kWh/year
-
Annual carbon emissions reduction: 24,000 kWh/year × 0.15 kg CO₂e/kWh = 3,600 kg CO₂e/year This equates to 3.6 tonnes CO₂e/year in emissions reduction.
This illustrative calculation compares energy across water-supply systems; it is not automatically a reduction in the site's Scope 2 inventory. Avoided utility-supply emissions and added on-site electricity must be assigned to their respective reporting boundaries and emission factors. The assumed 80% substitution requires a rainfall-and-storage water balance, and actual savings must include collection losses, treatment yield, maintenance, and backup supply.
Utility Supply and Fit-for-Purpose Rainwater Reuse
| Topic | Utility-only raw water | Rainwater harvest + fit-for-purpose treatment |
|---|---|---|
| Risk | Tariff, rationing, and basin stress passed through. | On-site buffer; storm peak shaved at the fence line. |
| Energy | Long conveyance + central plant stack. | Shorter loops; UV/UF sized to actual end use. |
| Disclosure | Opacity without sub-metering. | Volume, kWh/m³, and end-use tags for questionnaires. |
Carbon savings calculator (illustrative)
Estimate annual changes in electricity use and CO₂e emissions from specific energy before and after a change. Replace defaults with site meter data and the grid emission factor required by your utility or ESG methodology.
Annual electricity reduction = flow × annual operating hours × (specific energy before − after). Emissions reduction = electricity reduction × grid factor / 1000. Negative values indicate an increase.
ΔkWh = Q × H × (SEC₀ − SEC₁) · ΔtCO₂e = ΔkWh × EF / 1000
Specific energy reduction: 1.00 kWh/m³
Estimated electricity savings: 800,000 kWh / year
Indicative avoided emissions: 336 tCO₂e / year
