Industrial parks globally face increasing pressure to adopt sustainable water management practices, driven by tightening environmental regulations, escalating water scarcity, and the imperative for circular economy models. These facilities, housing diverse manufacturing tenants, present a unique challenge: the aggregation of highly variable wastewater effluents. These streams often possess differing characteristics, including high Chemical Oxygen Demand (COD), elevated concentrations of metals, and wide-ranging salinity (Total Dissolved Solids, TDS) signatures.

Traditional wastewater treatment approaches often fall short, leading to significant discharge volumes and lost resources. Zero Liquid Discharge (ZLD) mandates, particularly in water-stressed regions or environmentally sensitive areas, push industrial parks toward centralized, advanced brine management and resource recovery. Failure to implement a robust and adaptable ZLD strategy can result in non-compliance, heavy fines, and operational instability. Common pitfalls include the commingling of incompatible waste streams in a single sump, mis-sizing membrane systems based on average rather than peak or worst-case water quality, and designing thermal evaporation/crystallization blocks for a chemistry that is never consistently achieved.

AquaChain partners with industrial parks to transform these challenges into opportunities for sustainability and operational efficiency. Our approach focuses on meticulous segregation, advanced modular treatment, and a "concentration ladder" philosophy, ensuring compliance with stringent local environmental discharge permits while fostering resource recovery.

Water Quality Targets & Compliance

The primary objective of ZLD is to eliminate liquid discharge. However, embedded within this goal are critical water quality targets for both internal reuse and the composition of the final concentrated solid or manageable brine fraction. Incoming raw water from various tenants can exhibit significant fluctuations in:

• Total Suspended Solids (TSS) and Colloids: Impacting membrane fouling.
• Chemical Oxygen Demand (COD) and Biological Oxygen Demand (BOD): Indicating organic loading.
• Heavy Metals: Requiring specific removal strategies.
• Salinity (TDS) and Specific Ions: Driving osmotic pressure and scaling potential.
• pH: Influencing solubility and membrane compatibility.

For internal reuse, water quality targets are dictated by the application. For instance, cooling tower makeup might require permeate with TDS below 500 mg/L and low hardness, while high-pressure boiler feed demands exceptional purity, typically with conductivity below 0.2 µS/cm or resistivity above 5 MΩ·cm, and undetectable silica. The ultimate concentrate destined for off-site disposal or resource recovery must meet specific criteria for hazardous waste classification or purity for sale (e.g., industrial-grade salts).

AquaChain's solutions are engineered to consistently meet these diverse quality benchmarks, ensuring maximum resource utilization and minimal environmental impact.

AquaChain's Integrated Process Train for ZLD

AquaChain’s technical approach emphasizes a holistic, modular, and digitally integrated system tailored for the complex, variable nature of industrial park effluents.

1. Source Segregation and Pre-treatment

Effective ZLD begins at the source. AquaChain champions a segregation policy where high organics, high metals, and high TDS streams are separated at the tenant's curb where feasible. This prevents cross-contamination, optimizes the treatability of each stream, and reduces the overall treatment burden.

Pre-treatment is meticulously designed per effluent line, based on comprehensive treatability studies:

• Primary Treatment: For bulk solids and gross organic removal, processes like dissolved air flotation (DAF), flocculation, and sedimentation are employed.
• Advanced Physical Filtration: To protect downstream membrane systems, robust filtration is paramount. For raw waters with an SDI₁₅ consistently above 5, multimedia filtration (MMF) and/or ultrafiltration (UF) are explicitly required. UF effectively removes suspended solids, colloids, and macromolecules, significantly reducing the SDI and preventing irreversible fouling of reverse osmosis (RO) membranes.
• Chemical Conditioning: pH adjustment, oxidation, and the precise dosing of antiscalants are critical to prevent scaling, especially at higher recovery rates.
• Specialized Treatments:
  • Granular Activated Carbon (GAC): For adsorption of refractory organics, color, and certain trace contaminants.
  • Ion Exchange (IX): For selective removal of specific heavy metals or other ionic species that could foul membranes or exceed discharge limits.
  • Advanced Oxidation Processes (AOP): Such as UV/H₂O₂ or ozone, for the degradation of recalcitrant organic compounds that are not amenable to biological treatment.

2. Membrane Concentration Ladder

AquaChain employs a multi-stage membrane "concentration ladder" to maximize water recovery and minimize brine volume. Our systems feature digitally modelled flow paths and integrated stainless-steel skids, ensuring a premium industrial aesthetic and robust performance.

• Stage 1: Primary Reverse Osmosis (RO) or Nanofiltration (NF):

  • Purpose: This stage is designed for bulk TDS reduction and initial concentration. NF membranes selectively remove multivalent ions and larger organics while allowing monovalent ions to pass, useful for specific applications like hardness removal or color reduction. BWRO (Brackish Water RO) membranes offer high salt rejection (typically 98-99.5%) for general desalination.
  • Operation: Membranes operate in a cross-flow configuration, continuously separating permeate (treated water) from concentrate (brine). Close monitoring of transmembrane pressure and normalized permeate flow is crucial to detect fouling early.

• Stage 2: Advanced Brine Reverse Osmosis (Brine RO):

  • Purpose: To push the recovery rate further, significantly reducing the volume of the RO concentrate from the primary stage. These specialized membranes are designed to operate at higher pressures (e.g., up to 120 bar or 12 MPa) and handle higher osmotic pressures.
  • Scaling Control: The extreme concentration in this stage elevates the risk of scaling (e.g., silica, calcium sulfate, barium sulfate, calcium carbonate). Continuous LSI (Langelier Saturation Index) monitoring, predictive modeling, precise antiscalant dosing, and often pH adjustment are critical. AquaChain defines explicit silica and sulfate ceilings to guide system design and operational setpoints.
  • Performance: Achieve typical salt rejection rates of >99.0% even at elevated salinities, minimizing the load on downstream thermal systems.

3. Post-RO Polishing and High-Purity Water Production

For applications requiring ultra-high purity, such as boiler feed or specialized process rinse water, further polishing is applied to the RO permeate:

• Continuous Electrodeionization (CEDI/EDI): EDI systems continuously remove residual ions from RO permeate without the need for chemical regeneration. A DC electric field drives ions across ion-selective membranes, continuously regenerating the ion-exchange resin beads packed within the compartments. Concentrate streams are continuously flushed from the system, and a small electrode stream is generated. This produces ultra-pure water, often achieving resistivity greater than 10 MΩ·cm.
• Ultraviolet (UV) Disinfection: For biological control, especially in reuse applications.

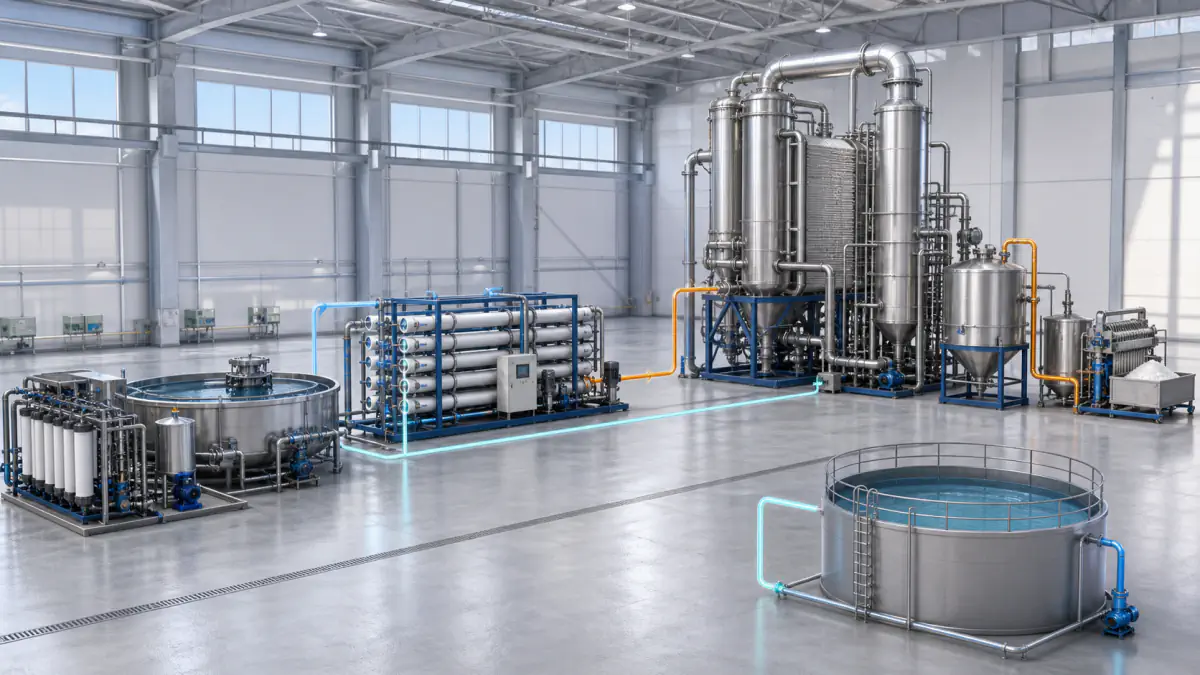

4. Concentrate Management and Resource Recovery

The final highly concentrated brine from the Brine RO stage is managed through a thermal partnership with evaporators and crystallizers.

• Evaporation/Crystallization: These units recover the remaining water as distillate, leaving behind solid salts. The design and operation of these systems are critically dependent on the agreed brine compositions from the upstream membrane stages.
• Salt Recovery: Where markets exist and salt purity allows, these solid salts can be recovered as valuable byproducts (e.g., sodium chloride, sodium sulfate) for industrial use, aligning with resource recovery goals.

Operations, Monitoring, and CIP Philosophy

AquaChain implements a proactive operations and monitoring philosophy for sustained performance:

• Digital O&M: Remote monitoring of critical parameters is standard. Key performance indicators (KPIs) include specific energy consumption (kWh/m³ permeate), normalized permeate flow, individual stage ΔP (pressure drop), TDS rejection across each membrane stage, and system recovery rate.
• Fouling Resistance: AquaChain's design emphasizes fouling resistance as the guardrail, ensuring sustainable recovery rates rather than pushing recovery to the point of rapid fouling. Continuous monitoring allows for early detection of concentration polarization, biofouling, or scaling.
• CIP (Clean-in-Place) Automation: Trend-based triggers for CIP are implemented, rather than fixed schedules. When stage ΔP across the membrane elements increases by a predetermined percentage (e.g., 10-15%) or normalized permeate flow declines by a set amount (e.g., 10%), an automated CIP sequence is initiated, utilizing appropriate cleaning chemicals (acid, caustic, biocide) to restore membrane performance and extend lifespan.

Addressing Risks and Common Engineering Mistakes

• Incompatible Streams: The primary risk in industrial park ZLD is the commingling of incompatible streams. High concentrations of certain metals (e.g., iron, manganese) can precipitate with oxidizing agents or at specific pH levels, causing severe fouling. High organics can exacerbate biofouling. AquaChain emphasizes segregation and targeted pretreatment to mitigate these risks.
• Underestimating Variability: Sizing membrane stages solely on average water quality leads to underperformance and rapid fouling during peak loads or compositional shifts. AquaChain designs for worst-case scenarios and implements robust control systems.
• Ignoring Scaling Potential: Neglecting comprehensive LSI and scaling potential calculations at various concentration factors is a critical error. AquaChain employs advanced modeling and pilot studies to predict and mitigate scaling, particularly for silica, calcium sulfate, and other sparingly soluble salts at high recovery rates.
• Lack of Pilot Studies: Skipping pilot work, especially for complex industrial wastewaters, is a significant mistake. AquaChain champions a pilot culture, utilizing side streams for coupon tests, jar tests, and small-scale membrane studies (e.g., with pilot-scale RO) to validate treatment efficacy and optimize chemical dosing before committing to full-scale capital expenditure.

2026 Forward-Looking Context

AquaChain is committed to integrating cutting-edge technologies that enhance the sustainability, efficiency, and intelligence of industrial water treatment systems.

Energy & ESG

The drive towards ZLD must be balanced with energy efficiency. AquaChain prioritizes solutions that minimize energy consumption. Our designs focus on specific energy (e.g., kWh/m³ permeate), employing high-efficiency pumps and motors. For high-pressure RO applications where salinity and pressure justify it, energy recovery devices (ERD) are standard on concentrate streams, recovering up to 95-98% of the hydraulic energy from the concentrate and significantly reducing the overall power demand. This directly contributes to the environmental, social, and governance (ESG) objectives of industrial park operators, reducing operational costs and carbon footprint.

Digital O&M for Enhanced Reliability

AquaChain’s digital-first approach extends to operations and maintenance. Our systems incorporate advanced remote monitoring capabilities, allowing for real-time tracking of critical operational parameters from anywhere. Beyond simple alarms, our platforms utilize trend-based triggers for optimizing maintenance schedules, such as CIP timing based on observed declines in normalized permeate flow or increases in stage ΔP. This predictive approach minimizes unscheduled downtime, prolongs membrane lifespan, and optimizes chemical usage, moving beyond reactive maintenance to a truly proactive operational model.

AquaChain's Modular RO Systems

Our modular RO system portfolio offers scalable solutions for every stage of industrial water management:

• pilot-scale RO: Ideal for pilot testing, laboratory research, and small-flow prototyping. It allows clients to de-risk complex industrial wastewater treatment projects, optimize chemical dosages, and validate membrane performance on actual effluent streams before investing in large-scale infrastructure.
• industrial RO: Our flagship production-scale solution, featuring multi-stage RO, advanced control logic, and full SCADA integration. Designed for the robust demands of industrial park ZLD, it delivers reliable, high-volume permeate with comprehensive monitoring and automated operations.

AquaChain engineering tip

Write a single internal brine table signed by membrane and thermal vendors—if they disagree, you are still in study phase, not construction. This ensures all parties are aligned on the composition and volume of the final concentrate, preventing costly redesigns and operational issues downstream.

Frequently asked questions

Q: Must every tenant hit ZLD alone?

A: Often no—central concentration can be significantly cheaper with fair cost allocation models based on volume and contaminant load, as opposed to each tenant installing and managing their own complex ZLD system.

Q: Is crystallizer always required?

A: Only when solids destiny demands it. Sometimes, producing a stable, reduced-volume brine that can be safely disposed of off-site by specialized contractors remains a rational and economically viable solution, especially if the capital and operational costs of full crystallization are prohibitive or if the recovered salts lack market value.

Q: Who owns variability risk?

A: Contract inlet specs and surcharges for out-of-spec dumps. Establishing clear contractual agreements with tenants regarding their effluent quality and implementing surcharges for deviations ensures accountability and provides clarity, which is crucial for managing the collective risk associated with variable influent streams. Clarity beats optimism in industrial park ZLD.
