Pulp & paper: effluent COD reduction and white water closure

Pulp & paper: effluent COD reduction and white water closure

Pulp and paper manufacturing is one of the most water-intensive industries globally. Mills process enormous volumes of water, facing increasing pressure to reduce freshwater intake, minimize effluent discharge, and enhance internal water reuse. This drive is fueled by escalating regulatory stringency, water scarcity, and the economic imperative to recover valuable resources. The challenge intensifies with "white water" systems, which accumulate fiber fines, fillers, stickies, and dissolved organics, posing significant hurdles to effective closure and high-quality reuse. Meeting effluent discharge limits for chemical oxygen demand (COD), biochemical oxygen demand (BOD₅), total suspended solids (TSS), and color, while simultaneously improving internal water quality for process stability, requires a robust and adaptable water treatment strategy.

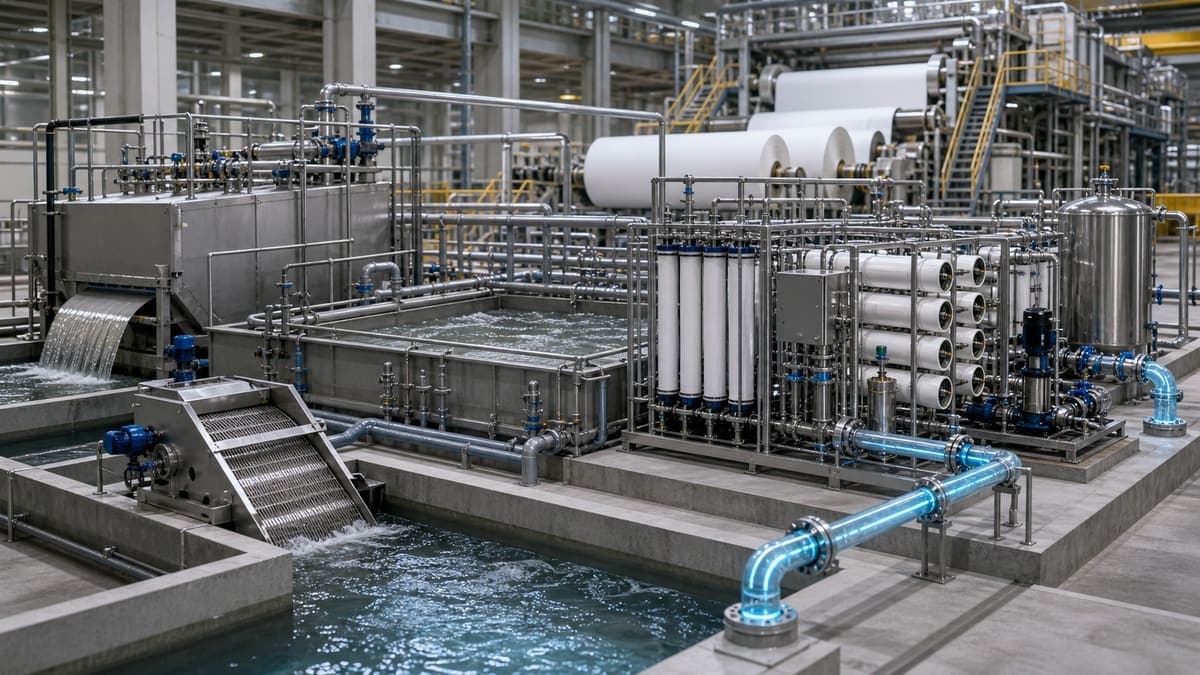

AquaChain provides advanced membrane-based solutions designed to navigate these complexities, offering both effluent treatment and strategic white water closure for sustainable mill operations. Our digitally modelled flow paths and integrated stainless-steel skids deliver a premium, industrial aesthetic combined with robust performance.

Industry Context & Regulatory Compliance Drivers

The pulp and paper sector operates under rigorous environmental regulations. Local and national environmental protection agencies (e.g., US EPA, European Environment Agency directives, or similar local authorities) set strict limits on the discharge of pollutants such as COD, BOD₅, TSS, and color into receiving waters. For instance, discharge permits often specify maximum allowable concentrations (e.g., 100 mg/L COD, 20 mg/L BOD₅, 30 mg/L TSS for direct discharge) that necessitate advanced tertiary treatment beyond conventional primary and secondary biological systems. Beyond external compliance, internal reuse targets are driven by the need to conserve resources, reduce operating costs associated with freshwater intake and wastewater treatment, and maintain product quality. Accumulation of dissolved solids, problematic ions (e.g., chlorides), and organics can impact paper machine chemistry, increasing corrosion rates, scaling, and the demand for process additives.

Water Quality Targets for Reuse & Discharge

Achieving mill closure requires a clear understanding of water quality targets for different reuse points:

• Machine Shower Water: Requires low TSS (<5 mg/L), low conductivity (<500 µS/cm), and minimal dissolved organics to prevent nozzle clogging, felt saturation, and sheet quality issues.
• Pulp Washing & Dilution: Tolerates higher conductivity but still requires low TSS and reduced COD to maintain pulp brightness and chemical efficiency.
• Boiler Feedwater (if applicable): Demands extremely high purity (low conductivity, low hardness, virtually no silica) to prevent scaling and corrosion, often requiring further polishing post-RO.
• External Discharge: Must comply with local regulatory limits for COD, BOD₅, TSS, color, and potentially specific toxic substances.

AquaChain's Integrated Process Train for Pulp & Paper

Our technical approach prioritizes internal segregation and polishing of specific streams to optimize treatment efficiency and cost-effectiveness.

Pretreatment: Foundation for Membrane Longevity

The highly variable and often challenging nature of pulp and paper effluents demands sophisticated pretreatment to protect downstream membrane systems from rapid fouling and scaling.

1. Primary Treatment: Initial coarse screening and clarification (e.g., dissolved air flotation (DAF) or sedimentation) are crucial for removing gross suspended solids, fibers, and grease.
2. Biological Treatment: Aerobic or anaerobic biological processes significantly reduce BOD₅ and COD.
3. Advanced Solids Removal: Following biological treatment, multimedia filtration (MMF) is often employed to reduce residual TSS. For robust protection of downstream RO, especially when the SDI₁₅ (Silt Density Index at 15 minutes) of the treated effluent consistently exceeds 5, ultrafiltration (UF) is essential. UF effectively removes suspended solids, colloids, and macromolecules, virtually eliminating the risk of particulate fouling on RO membranes.

Reverse Osmosis (RO): Dissolved Solids & Color Removal

After effective UF pretreatment, Reverse Osmosis (RO) is employed to achieve significant reductions in dissolved solids, color, and residual COD, enabling high-quality water reuse or compliant discharge. RO membranes operate via cross-flow filtration, where a portion of the feed water passes through the membrane as permeate, and the concentrated impurities are flushed away as concentrate.

• High Salt Rejection: Our RO systems achieve typical salt rejection rates of 98-99.5%, depending on membrane type and feed water quality.

• Efficient COD & Color Removal: RO effectively removes dissolved organic matter, including lignins and color compounds, critical for closing water loops and meeting stringent discharge color limits.

• Scaling Control: Given the potential for high concentrations of calcium, magnesium, silica, and other scaling salts in the RO concentrate at high recovery rates, AquaChain systems incorporate advanced antiscalant dosing. We meticulously calculate the LSI (Langelier Saturation Index) and other scaling indices (e.g., Modified Fouling Index) to optimize antiscalant chemistry and dosage, preventing crystal formation on the membrane surface.

  For systems designed for high flow rates and high-pressure operation, especially when treating highly saline streams or aiming for maximum water recovery, AquaChain integrates energy recovery devices (ERD). These devices capture hydraulic energy from the high-pressure RO concentrate stream and transfer it to the incoming feed water, significantly reducing the specific energy consumption (e.g., from 1.5-2.5 kWh/m³ down to 0.8-1.2 kWh/m³ permeate) and enhancing the overall ESG (Environmental, Social, and Governance) profile of the mill.

Post-Treatment (Optional): Targeted Polishing

While RO often provides sufficient water quality for most pulp and paper reuse applications, highly specialized needs, such as ultra-pure boiler feed or specific chemical make-up water, might require further polishing. This could include ion exchange for complete deionization or UV disinfection for enhanced microbiological control.

Operations, Monitoring, and CIP Philosophy

Effective operation of membrane systems hinges on continuous monitoring and a proactive CIP (Clean-in-Place) strategy.

• Performance Monitoring: AquaChain systems include comprehensive instrumentation to monitor key parameters such as transmembrane pressure (TMP), individual pressure vessel ΔP (pressure drop), permeate flow rate, feed/permeate conductivity, and temperature.
• Normalized Permeate Flow: We continuously calculate and trend normalized permeate flow to detect membrane fouling early, allowing for timely intervention before irreversible damage occurs.
• CIP Triggers: Our digital control systems use trend-based triggers for initiating CIP cycles. For example, a 10-15% drop in normalized permeate flow or a 10-15% increase in transmembrane pressure (or ΔP across a stage) typically signals the need for a CIP. This proactive approach minimizes downtime and extends membrane lifespan.
• CIP Regimen: CIP typically involves sequential chemical washes (e.g., alkaline wash with detergents/chelants for organic/biofouling, acidic wash for inorganic scaling) tailored to the specific foulants identified in the effluent.

Risks and Common Engineering Mistakes

Several factors can undermine the success of membrane projects in pulp and paper mills:

• Underestimating Fouling Potential: Effluents often contain high levels of anionic trash, colloids, and biological precursors that can rapidly foul membranes if not adequately addressed by robust pretreatment.
• Insufficient Pretreatment: Skipping or under-designing MMF/UF stages before RO is a critical mistake, leading to premature membrane degradation, frequent CIPs, and higher operating costs.
• Ignoring Scaling Indices: Neglecting thorough LSI and other scaling potential calculations, especially for calcium sulfate, silica, and barium sulfate, often results in severe scaling at high RO recovery rates.
• Biofouling Management: Inadequate control of microbiological growth in closed loops can lead to biofouling of membranes, septicity, and odor issues.
• Poor Chemical Compatibility: Selecting membrane materials or cleaning chemicals incompatible with the effluent chemistry or paper machine additives can lead to membrane damage.

2026 Forward-Looking Solutions

AquaChain is at the forefront of driving innovation and sustainability in industrial water treatment.

Energy Efficiency & ESG Integration

Our commitment to ESG (Environmental, Social, and Governance) principles guides our design philosophy. AquaChain systems are engineered for minimal specific energy consumption (kWh/m³ of permeate). Through hydraulic optimization, high-efficiency pumps, and the strategic integration of energy recovery devices (ERD) in high-pressure RO applications, we significantly reduce the energy footprint of water treatment. This not only lowers operational costs for our clients but also contributes directly to reduced greenhouse gas emissions and a more sustainable industrial process.

Digital O&M & Predictive Maintenance

AquaChain embraces a digital-first approach to operations and maintenance. Our integrated SCADA systems provide real-time, remote monitoring of critical process parameters, including stage-specific ΔP, normalized permeate flow, conductivity, pH, and ORP. Through advanced analytics and trend-based algorithms, our systems can predict optimal CIP timing, identify potential issues like impending concentration polarization or biofouling, and even anticipate component wear. This predictive maintenance approach minimizes unplanned downtime, extends equipment lifespan, and optimizes chemical usage, leading to significant operational savings.

Modular RO Systems

Our modular RO system portfolio caters to the diverse needs of the pulp and paper industry. The pilot-scale RO offers compact, modular solutions ideal for pilot studies, laboratory-scale R&D, or small-flow prototyping to validate process chemistry and membrane performance before full-scale deployment. For industrial production, our industrial RO systems are robust, multi-stage, high-capacity membrane plants featuring full SCADA integration, automated control, and designed for continuous operation in demanding mill environments. For a demanding industry like pulp & paper with large water volumes and complex effluent streams, the industrial RO series provides the necessary scale and reliability.

Frequently Asked Questions

Q: Is full mill closure realistic for pulp and paper operations?

A: While full closure is an aspirational goal, it's often a multi-year, phased approach. Initial efforts typically focus on partial closure and targeted reuse of specific, cleaner process streams. Full closure requires significant capital investment, extensive process modifications, and a deep understanding of water chemistry impacts on product quality and equipment longevity.

Q: Do we always need Reverse Osmosis (RO) for water reuse in a paper mill?

A: Not always. The necessity of RO depends entirely on the required water quality targets for reuse. Many goals, such as reducing freshwater intake for less demanding applications or simply meeting discharge limits, can be achieved with UF and effective biological treatment. RO is primarily needed when high-quality permeate (low dissolved solids, low conductivity) is required, such as for boiler feed, specific process water, or to enable very high overall mill water recovery.

Q: What about odor and septicity in closed water loops?

A: Increased water recirculation can lead to the accumulation of organic matter and microbial activity, potentially causing septicity and odor issues (e.g., hydrogen sulfide). AquaChain designs include provisions for robust biological treatment, monitoring of ORP (Oxidation-Reduction Potential), and, where necessary, oxygenation or targeted biocide strategies (with careful safety and chemical compatibility review) to maintain aerobic conditions and control microbial growth.

Q: How do you manage scaling and fouling from high recovery RO in pulp & paper effluent?

A: Effective scaling and fouling management is critical. We employ robust pretreatment, including UF, to minimize particulate and colloidal fouling. For scaling, detailed feed water analysis, LSI calculations, and antiscalant optimization are performed. Operating parameters like flux and recovery rate are carefully selected to avoid exceeding the solubility limits of sparingly soluble salts in the concentrate. Regular monitoring of ΔP and normalized permeate flow, coupled with a proactive, chemistry-specific CIP regimen, ensures long-term membrane performance.
