Zero Liquid Discharge (ZLD) Roadmaps: modular water recovery and residual management
Pretreatment, membrane staging, and thermal block sequencing—how to phase capex without painting yourself into a chemistry corner.
Use when
ZLD fails when organics, silica, or scaling chemistry are underestimated.
Process options
Phased modules with agreed boundary conditions between membrane and thermal vendors.
Assessment output
Predictable concentrate and solids pathways for permits and ESG reporting.
Inputs and conditions for an assessment
Collect feed variability, capacity, target quality, operating hours, discharge or reuse boundaries and installed equipment data. Compare examples on matched conditions and meter boundaries; assess a project using actual water data, equipment documentation and any necessary tests.

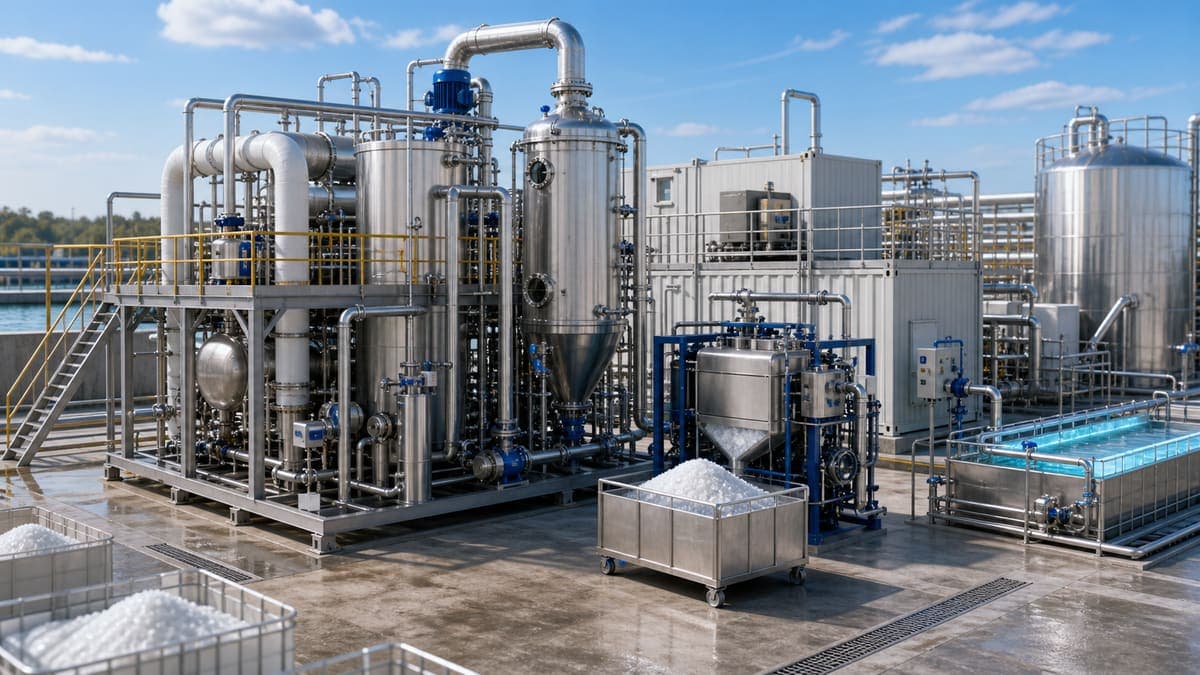

View the process illustration

Zero Liquid Discharge (ZLD) Roadmaps: Modular Water Recovery and Residual Management
Define a Zero Liquid Discharge (ZLD) project by its liquid-effluent boundary, feed chemistry, recovered-water quality and residual disposal route. ZLD does not mean every drop is recovered: moisture can leave with solids and other losses. A modular design can phase equipment and capital expenditure, but must retain a complete balance across pretreatment, membranes, thermal equipment, condensate, mother liquor, cleaning wastes and solids.
Water recovery can reduce freshwater demand, while evaporation and crystallization may add substantial electricity and heat demand. ZLD therefore does not automatically reduce carbon emissions. Compare total energy, chemicals, residual transport and disposal with a defined baseline; reporting data does not itself prove ESG compliance or export eligibility.
The Modular Advantage in ZLD
- Phased Implementation: Start with critical sections, prove value, and expand.
- Performance Assessment: Match configurations to measured wastewater chemistry and compare actual recovery, energy and residual production.
- Footprint Review: Check access, storage, maintenance clearance and utility needs before fitting modules into an existing layout.
- Deployment Planning: Preassembly may reduce site work, but delivery, interfaces, commissioning and permits determine the schedule.
- Adaptability: Reserve actual hydraulic, electrical and control capacity for identified future changes rather than assuming unlimited expansion.
Module boundaries should state flow, composition, pressure, temperature, materials and acceptance criteria. Use these interfaces to plan commissioning and future expansion; a modular arrangement alone does not guarantee full recovery or investment return.
Worked energy / carbon sketch
To illustrate the potential for energy optimisation through a modular ZLD approach, consider an industrial facility tasked with achieving ZLD for a challenging process wastewater stream.
Assumptions (Illustrative):
- Flow rate (Q): 500 m³/day (approximately 21 m³/h, assuming 24/7 operation)
- Operating hours (H): 8,000 hours/year
- Energy consumption of a traditional, less optimised ZLD (E_trad): 20 kWh/m³ of treated wastewater
- Energy consumption of the illustrative modular ZLD (E_mod): 12 kWh/m³ of treated wastewater (assumed comparison value, not guaranteed by modularity or heat recovery)
- Energy saving (ΔkWh/m³): 8 kWh/m³
- Grid emission factor: 0.25 kg CO₂e/kWh (hypothetical calculation factor, not a verified 2026 European grid average; use the actual reporting year and region)
Calculation:
- Annual Volumetric Flow (Q_annual): Q_annual = 21 m³/h * 8,000 h/year = 168,000 m³/year
- Annual Energy Saving (ΔE_annual): ΔE_annual = Q_annual * ΔkWh/m³ = 168,000 m³/year * 8 kWh/m³ = 1,344,000 kWh/year
- Annual Carbon Saving (ΔCO₂e_annual): ΔCO₂e_annual = ΔE_annual * Grid Emission Factor = 1,344,000 kWh/year * 0.25 kg CO₂e/kWh = 336,000 kg CO₂e/year ΔCO₂e_annual = 336 tonnes CO₂e/year
This arithmetic compares two assumed energy intensities for the same wastewater volume. It uses the rounded hourly flow rather than a full-calendar daily volume; state operating hours consistently. Verify electricity and heat boundaries, comparable feed and product quality, and any added chemical or residual impacts before claiming net carbon savings.
Monolithic and Modular ZLD Comparison
| Topic | Monolithic ZLD to assess | Modular roadmap to assess |
|---|---|---|
| Capex / time | Confirm EPC scope, FAT/SAT and commissioning schedule. | Plan phased skids, available capacity and funding/permit milestones. |
| Chemistry risk | Assign responsibility for the complete chemistry and balance. | Specify interfaces between pretreatment, membrane and thermal blocks. |
| Operability | Check turndown and response to feed changes. | Check whether UF/RO/evap capacity can be added within existing utilities and controls. |
FAQ
Q: Is ZLD always more energy-intensive than traditional wastewater treatment? A: Thermal concentration can increase energy demand compared with discharge-based treatment. Membranes and heat integration can improve a selected design, but modularity does not inherently use less energy than a monolithic system. Compare complete electricity, heat, water and residual impacts before judging net environmental benefit.
Q: How does modularity help with specific or complex wastewater streams? A: A tailored train might evaluate advanced oxidation (AOP), ultrafiltration, reverse osmosis and an MVR evaporator for different duties. Each stage requires demonstrated contaminant performance and compatible interfaces; the sequence does not automatically deliver optimum recovery or avoid excess equipment.
Q: What regulatory advantages does ZLD offer, especially for UK/EU operations? A: Reducing liquid discharge can change the applicable discharge obligations, but does not bypass permits. Confirm abstraction, air emissions, residual classification and disposal, recovered-water reuse and any remaining liquid outlets with the competent authority. Demonstrating ZLD does not by itself meet supply-chain carbon or sustainability criteria.
References
Carbon savings calculator (illustrative)
Estimate annual changes in electricity use and CO₂e emissions from specific energy before and after a change. Replace defaults with site meter data and the grid emission factor required by your utility or ESG methodology.
Annual electricity reduction = flow × annual operating hours × (specific energy before − after). Emissions reduction = electricity reduction × grid factor / 1000. Negative values indicate an increase.
ΔkWh = Q × H × (SEC₀ − SEC₁) · ΔtCO₂e = ΔkWh × EF / 1000
Specific energy reduction: 1.00 kWh/m³
Estimated electricity savings: 800,000 kWh / year
Indicative avoided emissions: 336 tCO₂e / year
